Feature:

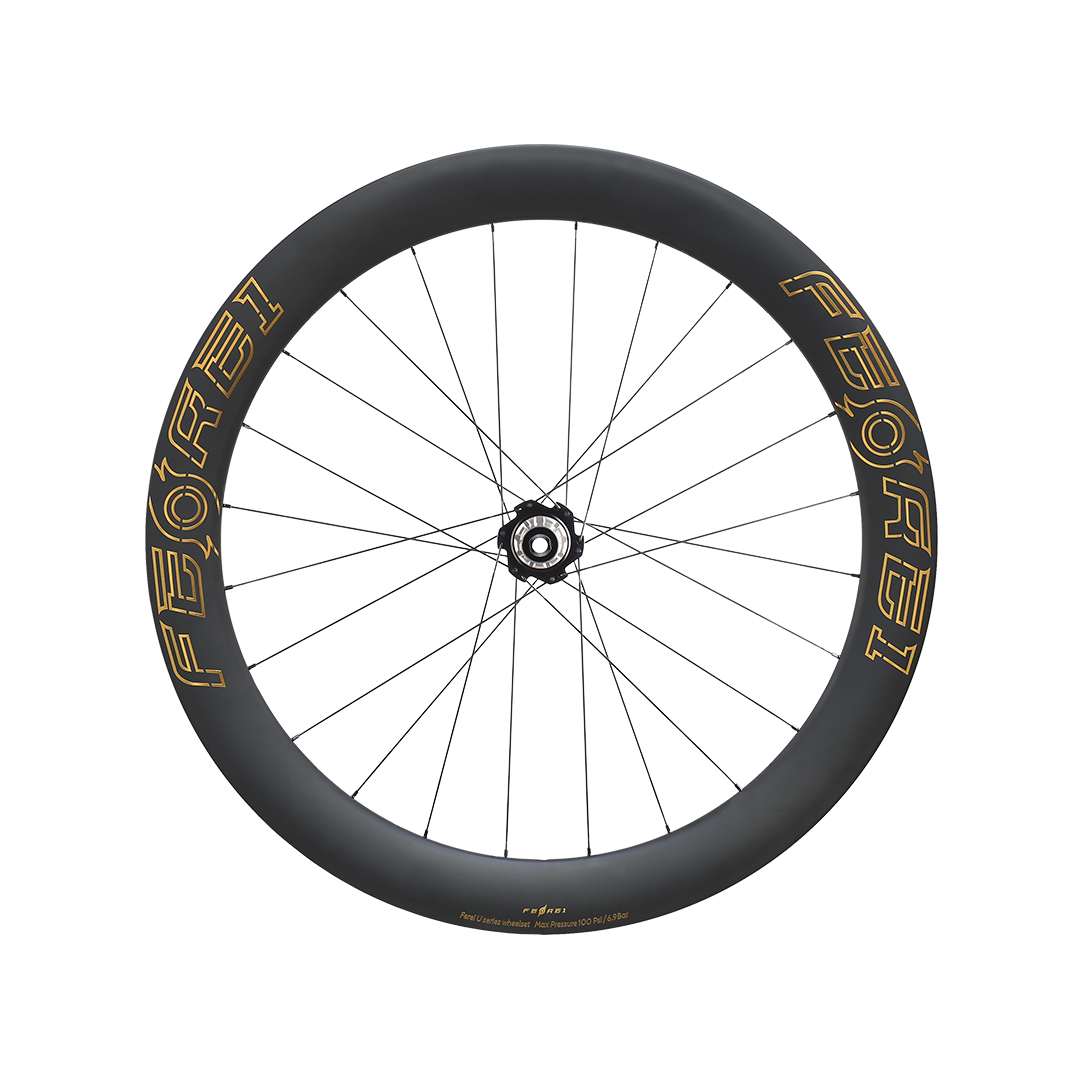

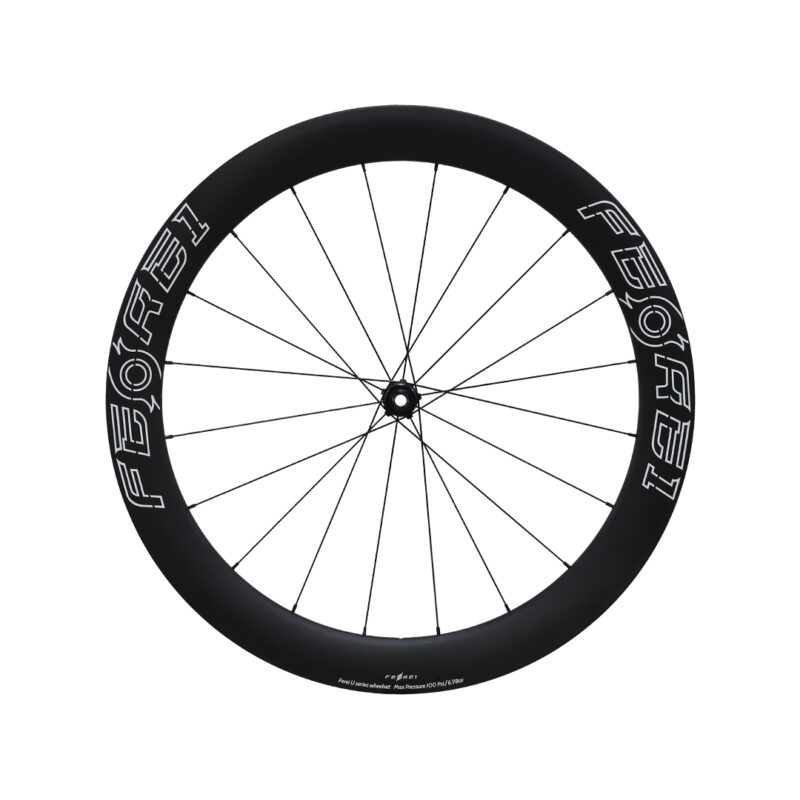

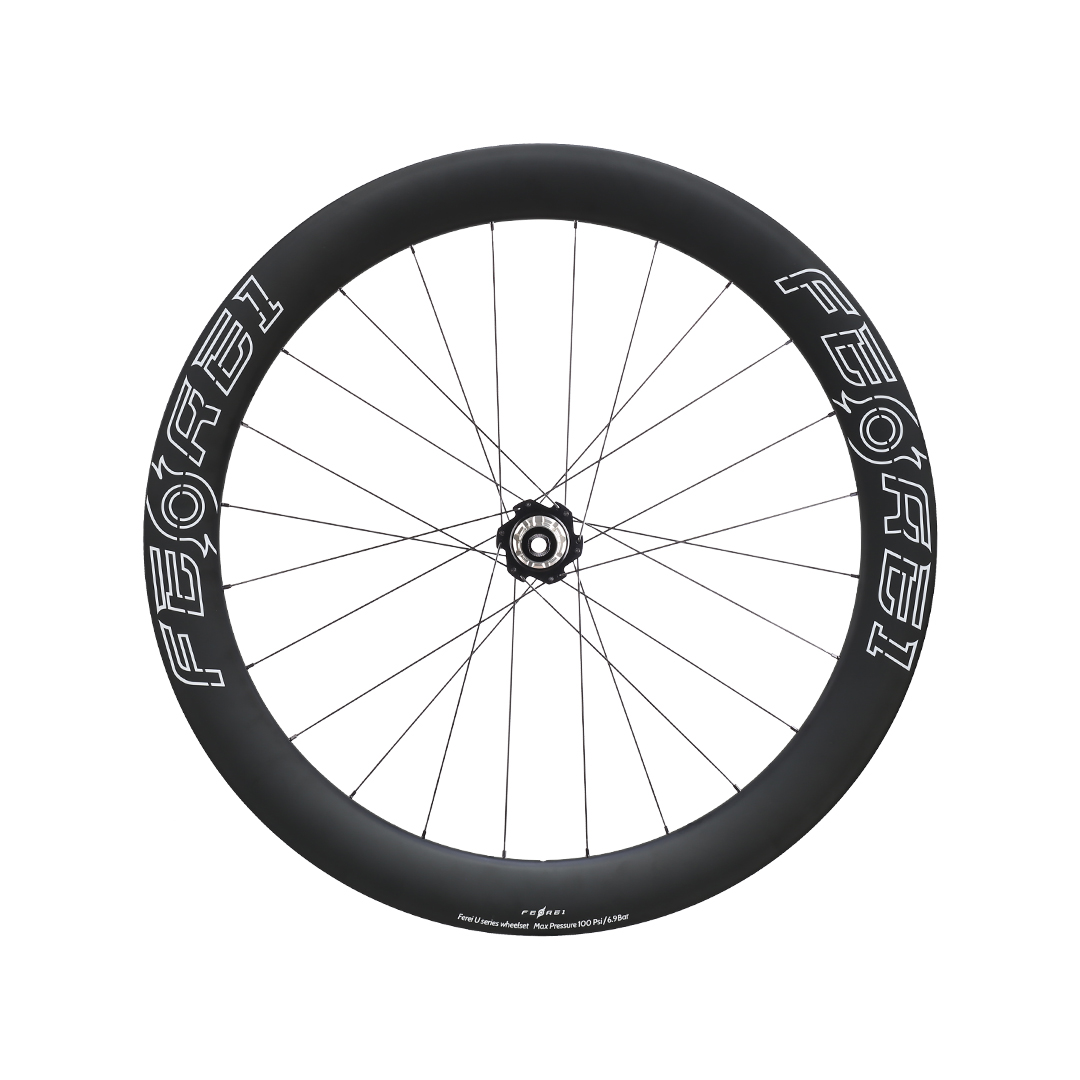

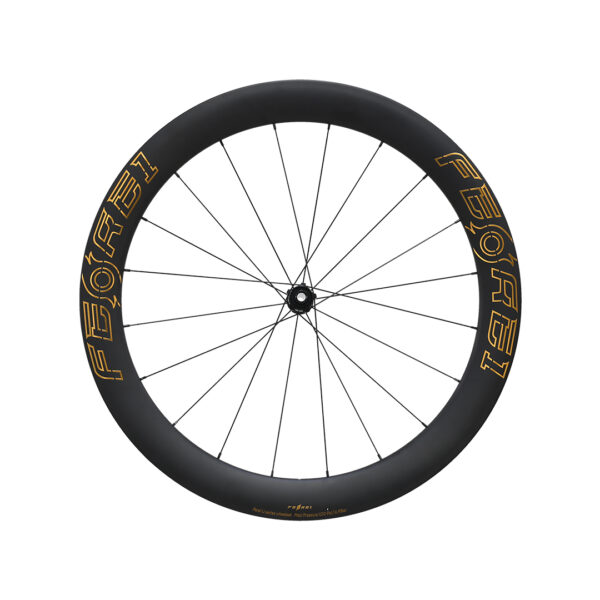

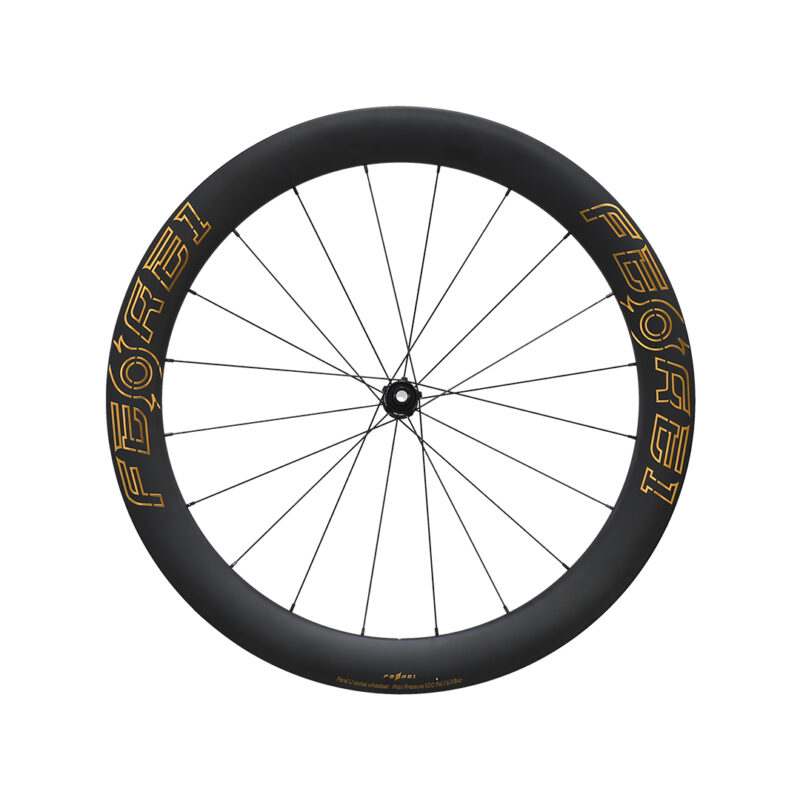

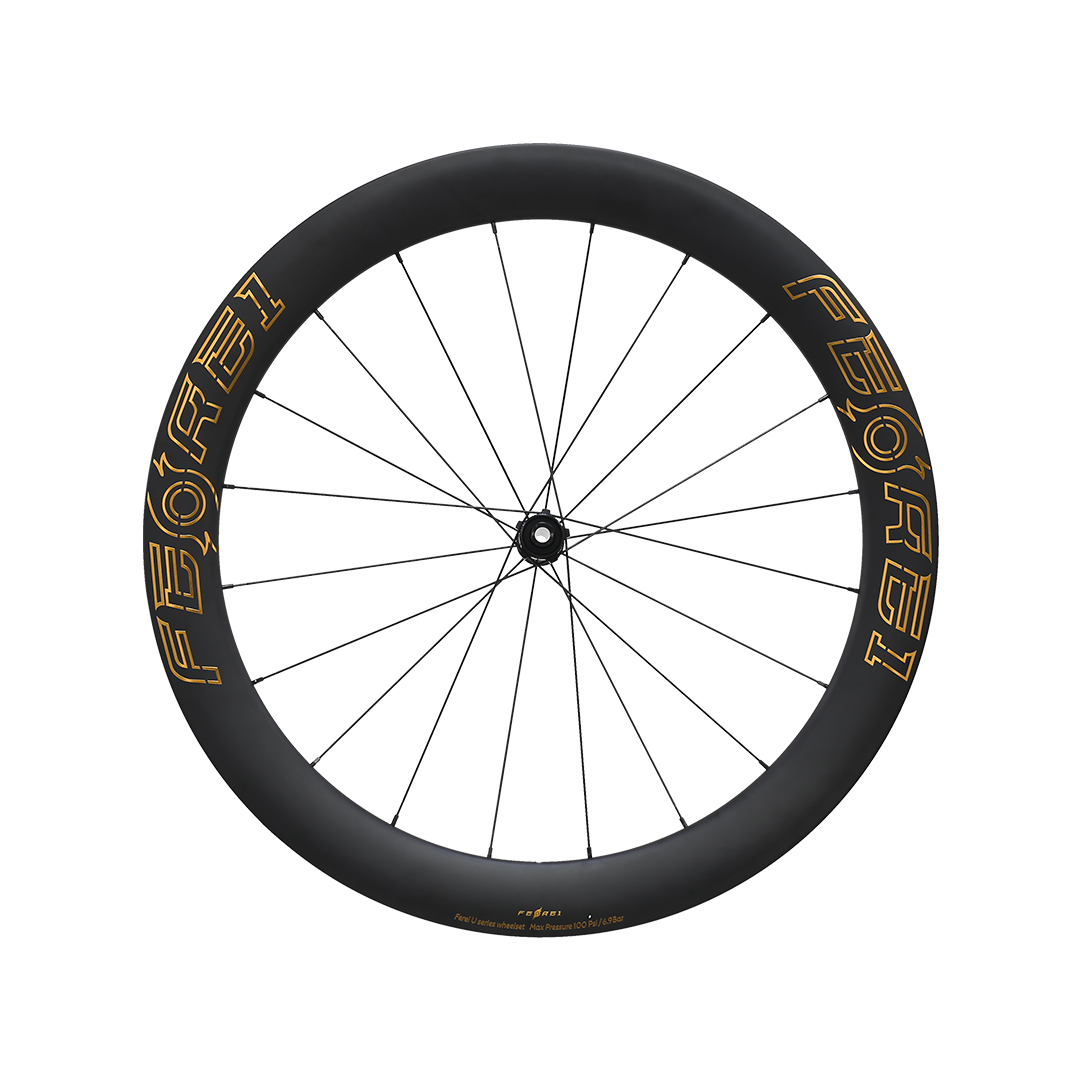

1.Featuring a 46mm frame height design, this product excels on both flat roads and uphill climbs, showcasing its characteristics of agility, rapid acceleration, and a lightweight feel to the fullest extent.
2.Original vacuum carbon fiber wheel rims, no need for tape during installation, eliminating concerns about inner tube damage due to tape aging.
3.Equipped with the Pillar 1420 flat spokes, optimized for aerodynamics, ensuring stability even in the face of crosswinds.
4.Equipped with the Pillar 1420 flat spokes, optimized for aerodynamics, ensuring stability even in the face of crosswinds.

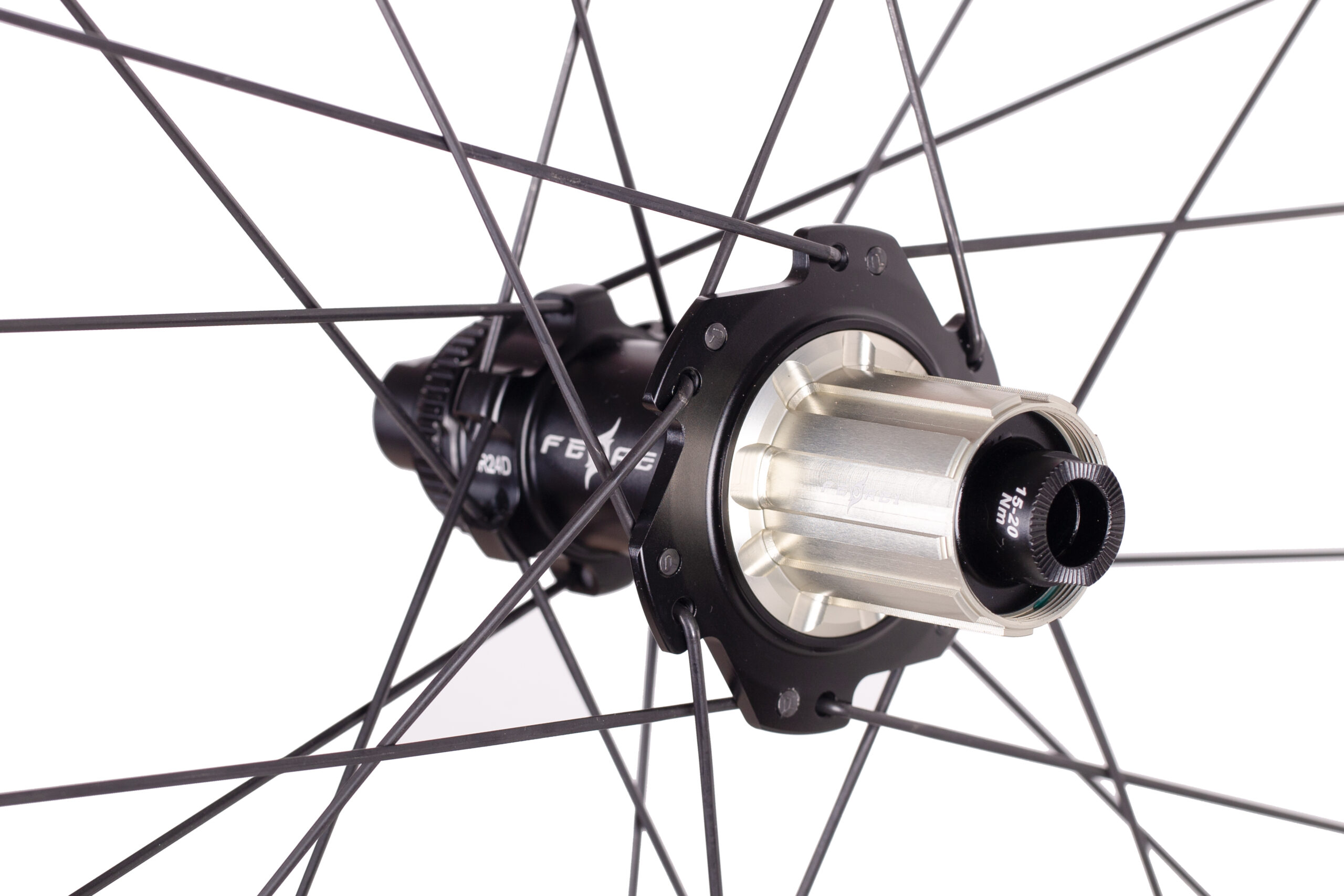

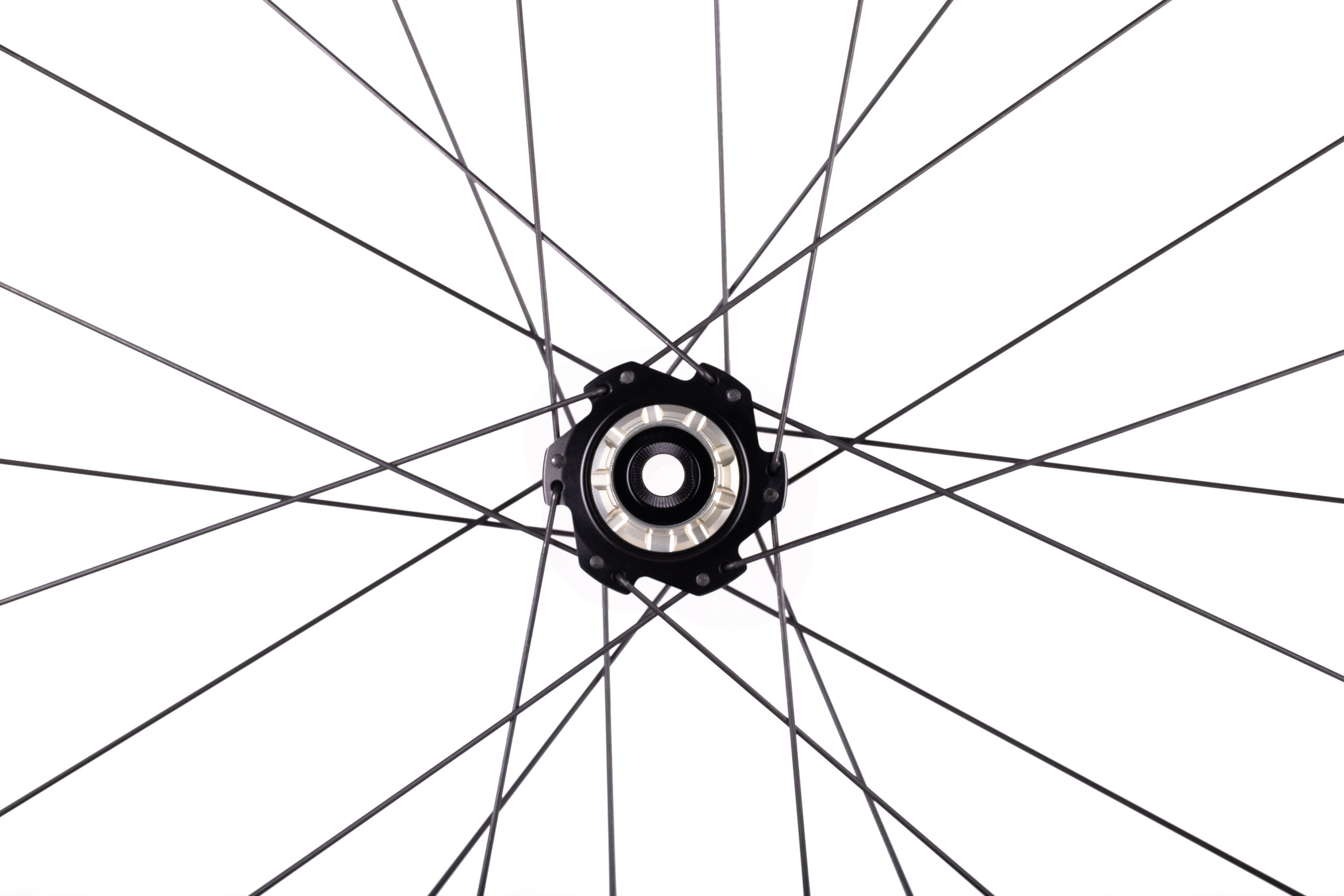

5.Large flange design, with an increased width on the drive side flange, enhances lateral rigidity.each spoke seamlessly integrates with the wheel rim for optimal comfort.

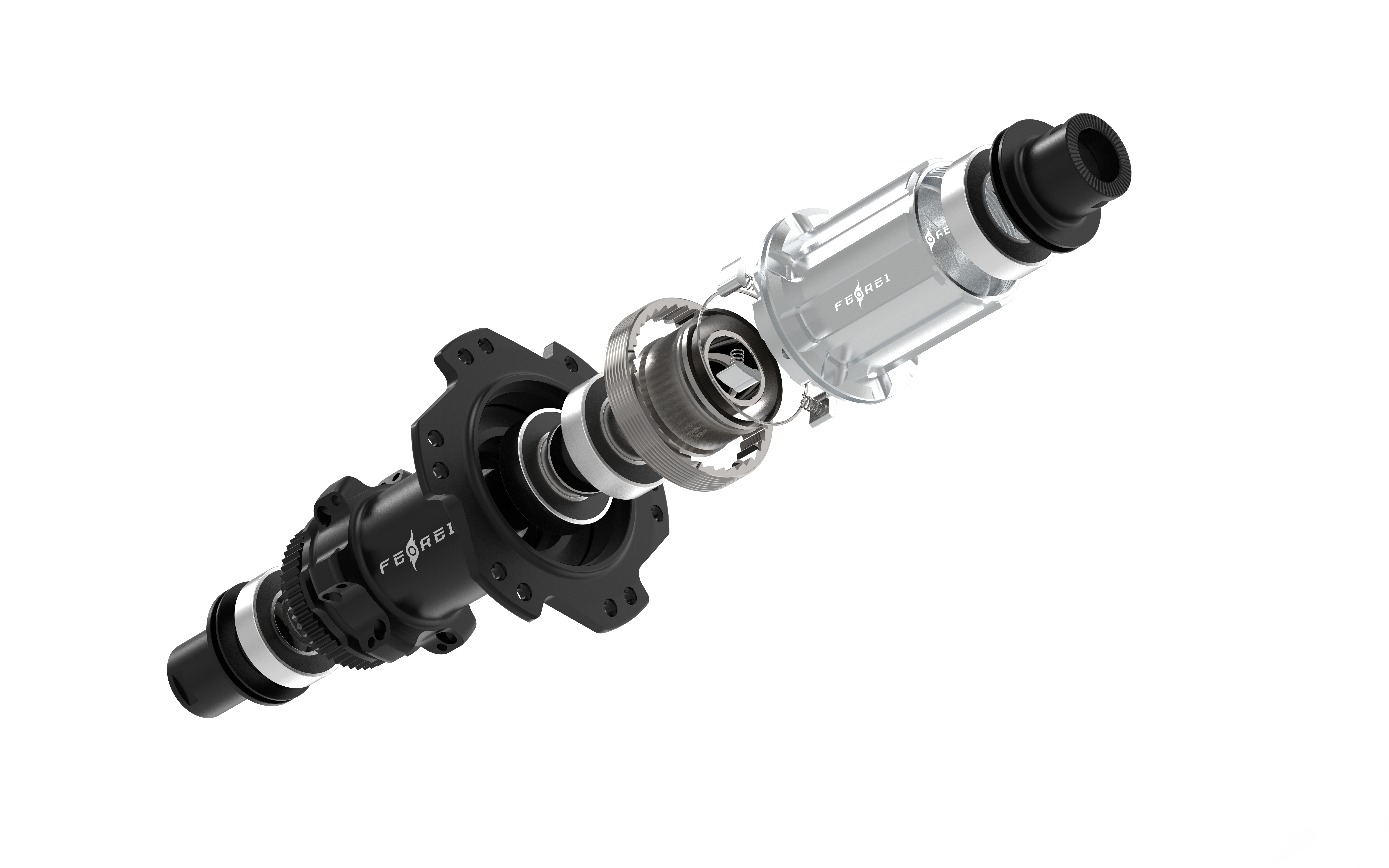

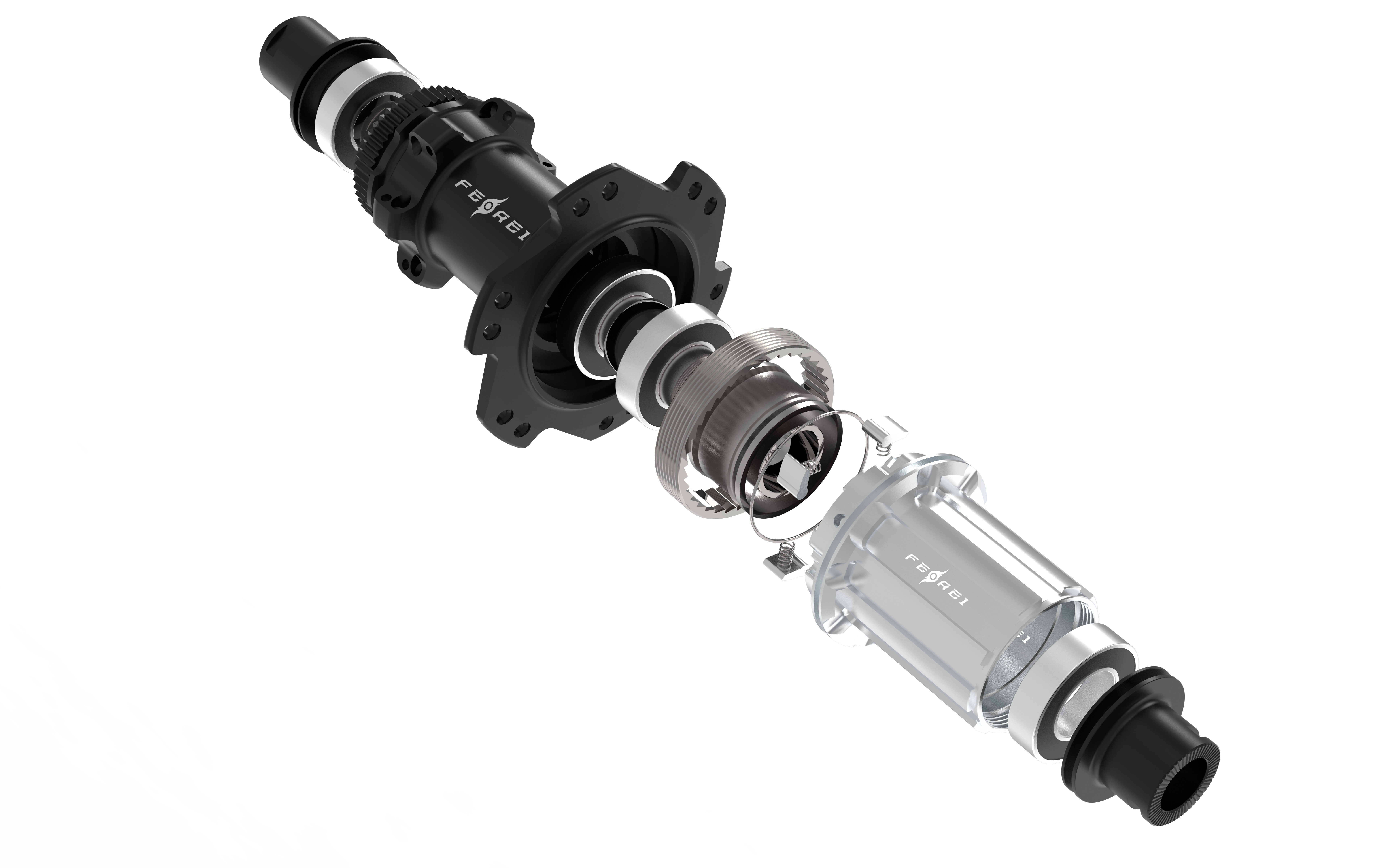

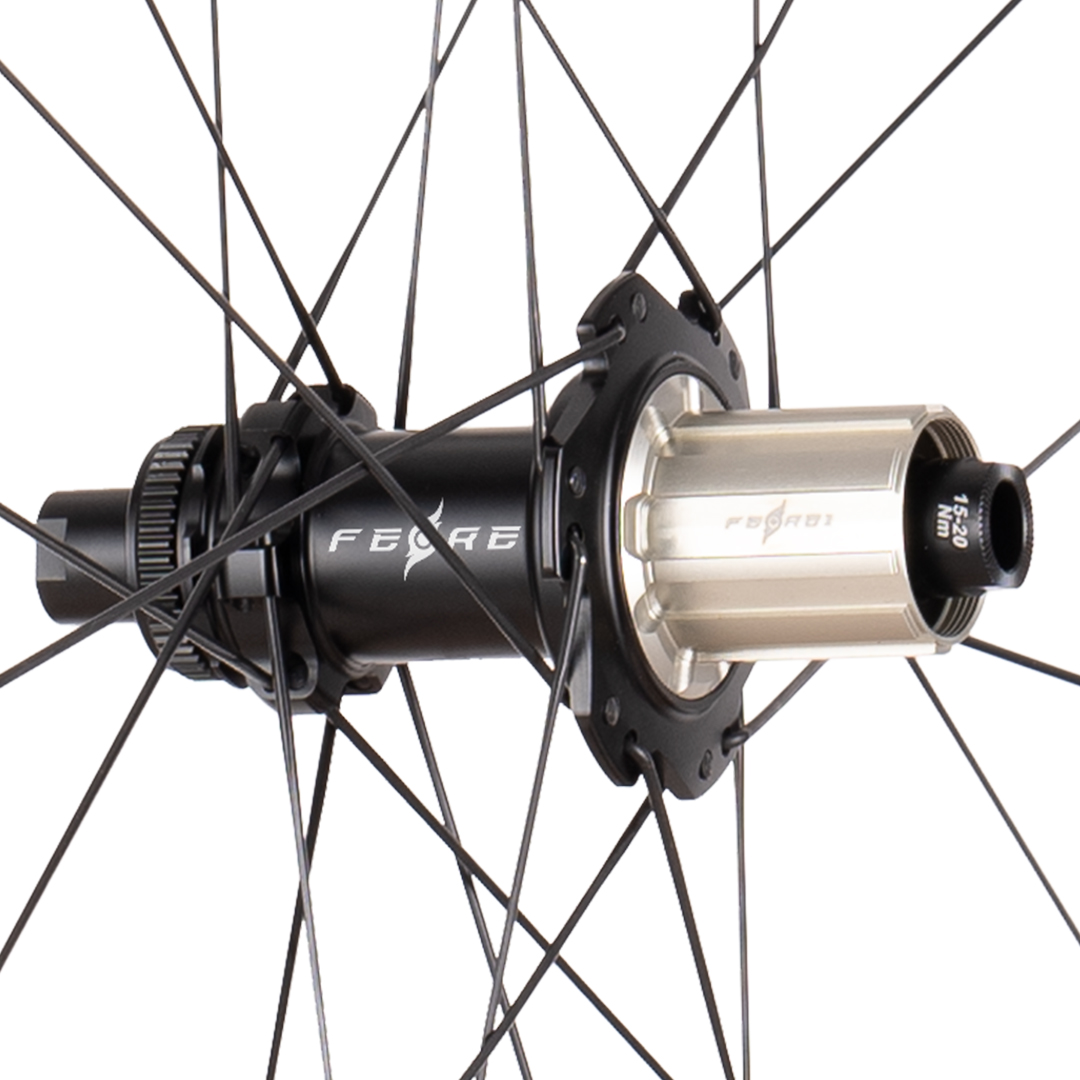

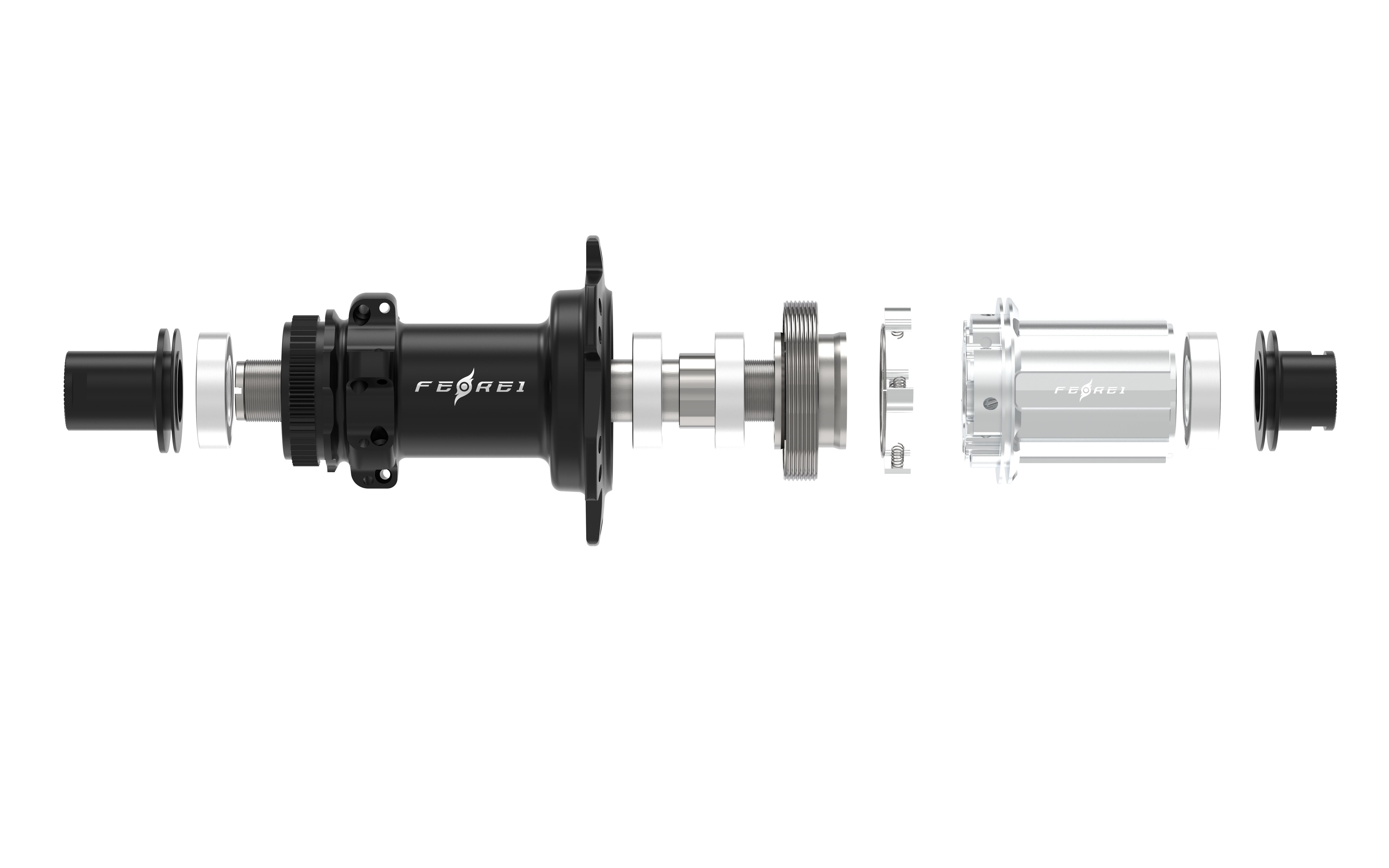

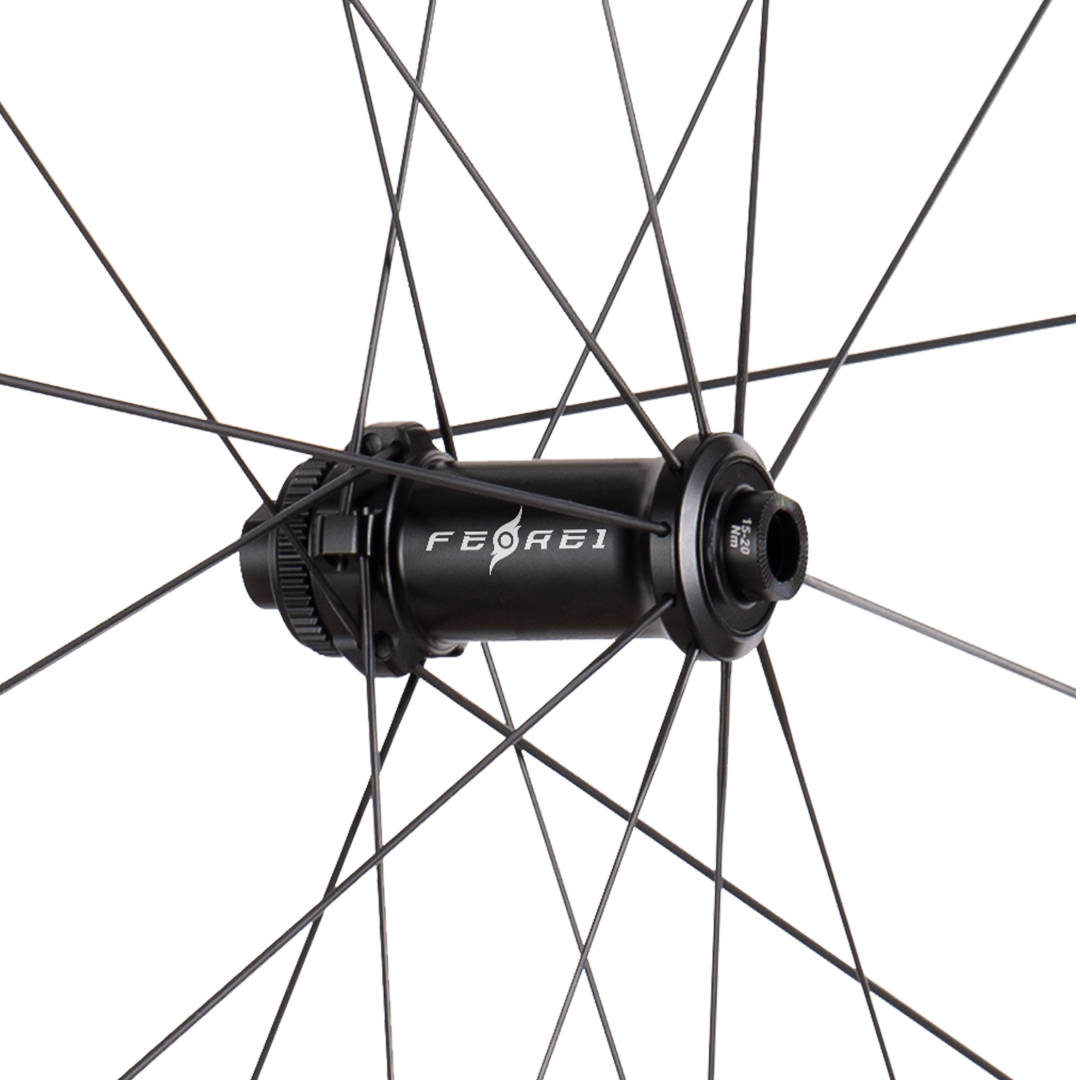

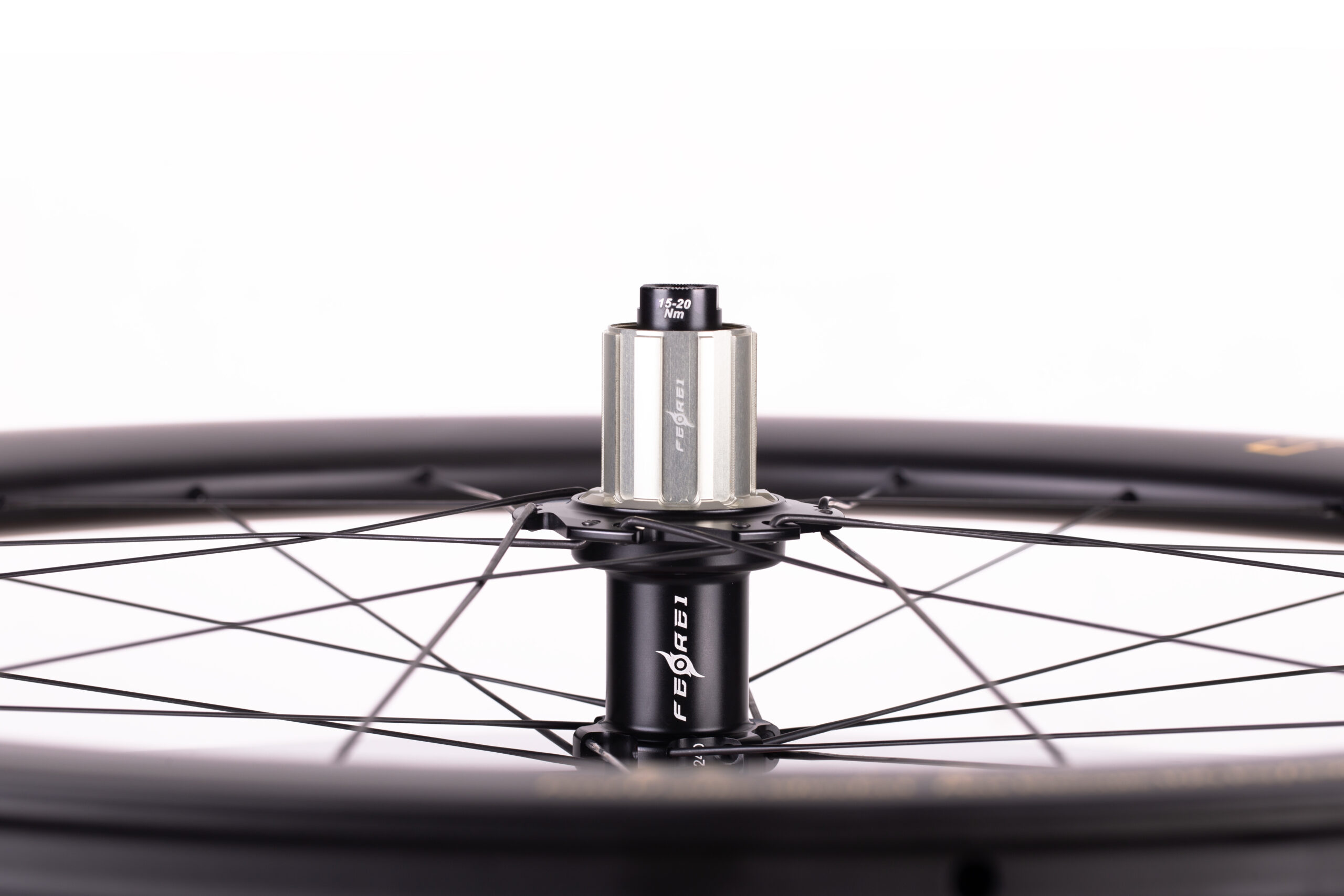

6.Paired with the precision CNC hub independently developed and manufactured by FEREI, featuring a dust-free design. Through high-precision assembly of each component, achieving physical dust prevention to minimize damping.

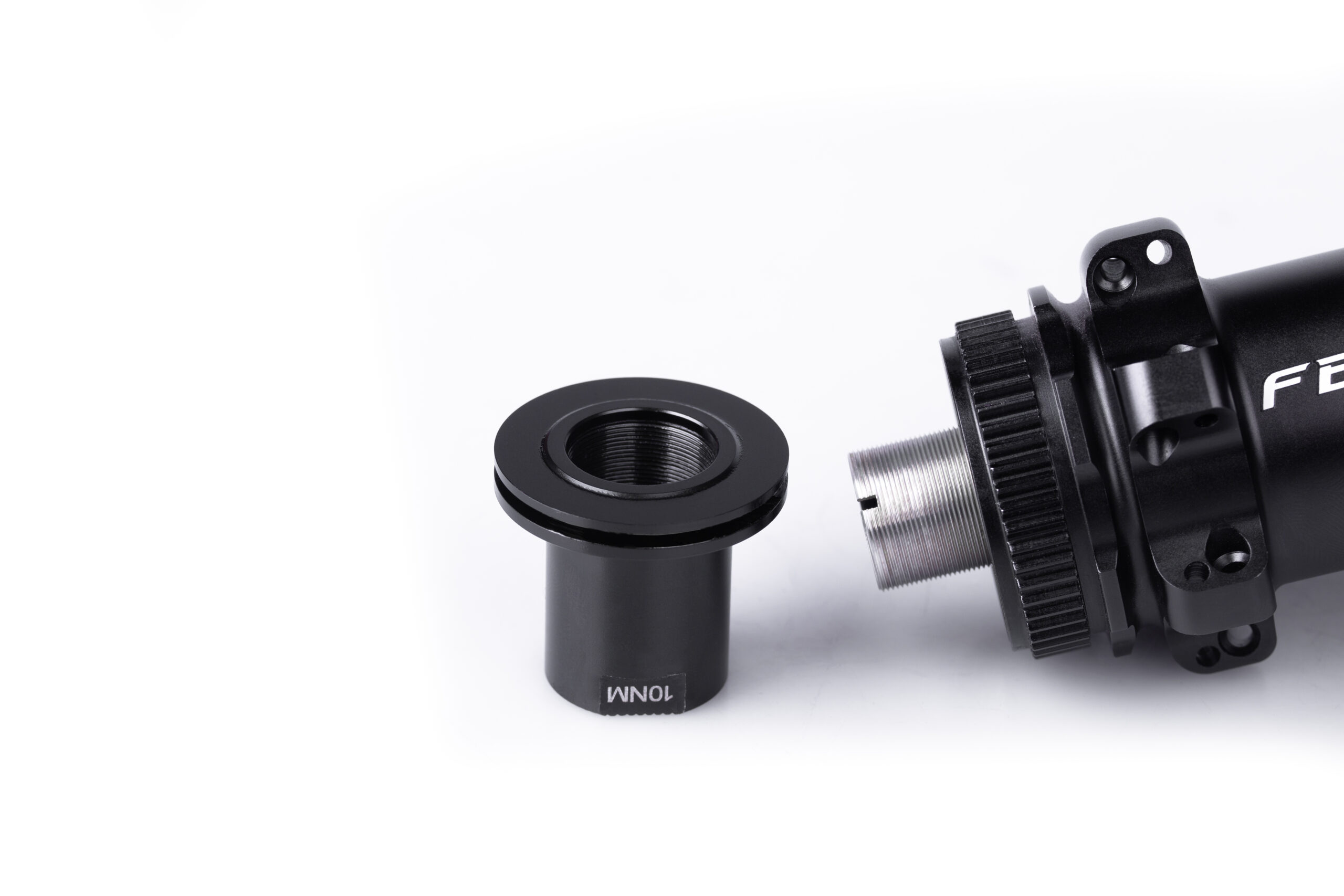

7.The axle core and side cover feature a threaded joint design, which rigorously tests the precision processing requirements. This not only provides convenience during the disassembly and reassembly of the wheelset, eliminating the need for readjusting disc brakes, but also addresses the drawbacks of traditional press-fit side covers. The wear of anti-loosening rubber rings in these covers can lead to hub misalignment and cover loss.
Rim Dept | Front46mm Rear46mm |
Front60mm Rear60mm | |
Rim External Width | 28mm |
Rim internal Width |
21mm |
Tire types | Tubeless |
Rim Material | T700 Carbon Fiber |
Rim Diameter | 700C |
Hub body | Aluminum Alloy (CNC Precision Machining) |

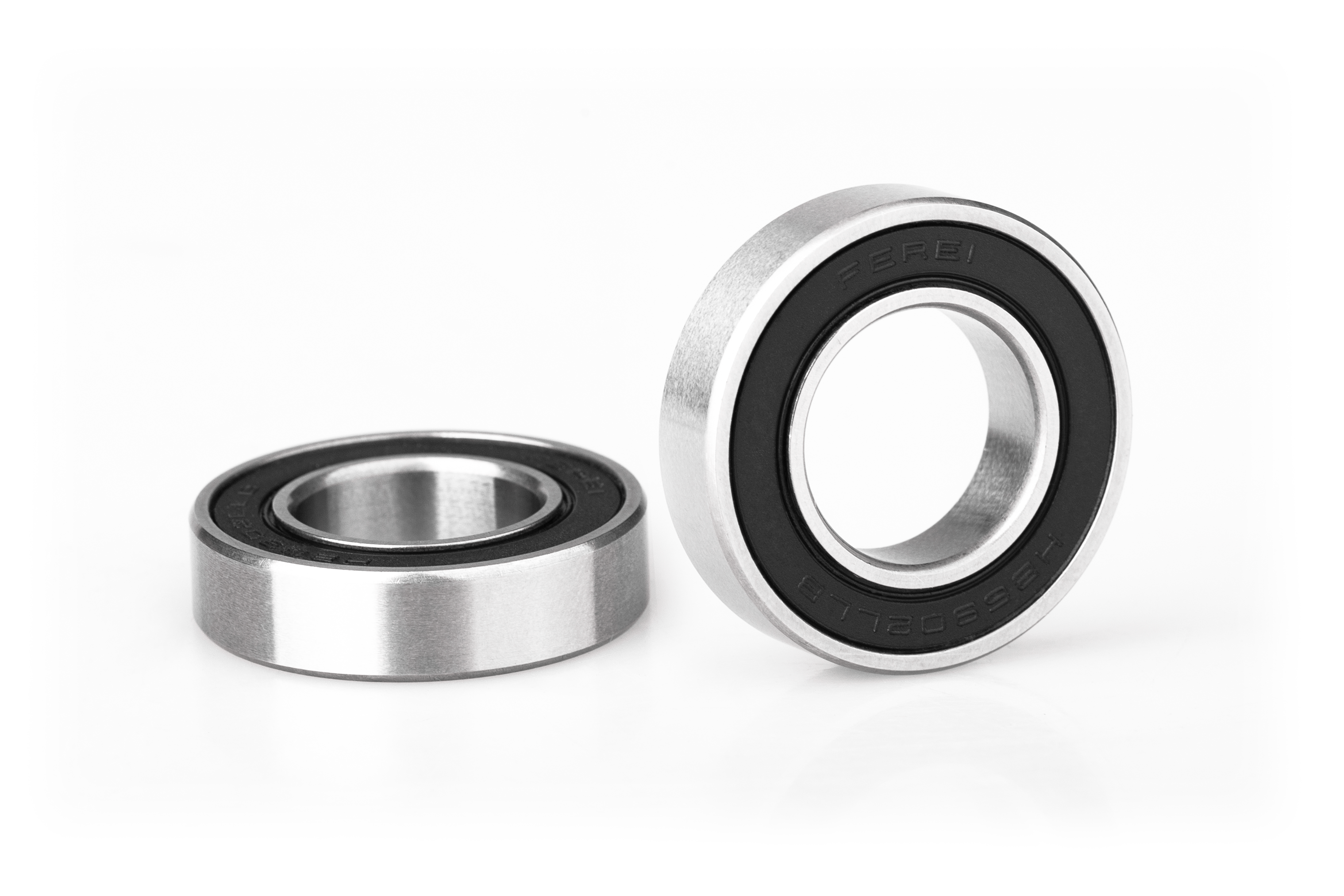

Bearings | Steel bearings |
Holes | front-20 holes、rear-24 holes |
Spoke Pattern | 1:1 |
Brake compatibility | Disc (Center Lock) |
Axle | Front: Thru-Axle12X100 / QR9X100 |
Rear: Thru-Axle12X142 /QR10X135 | |

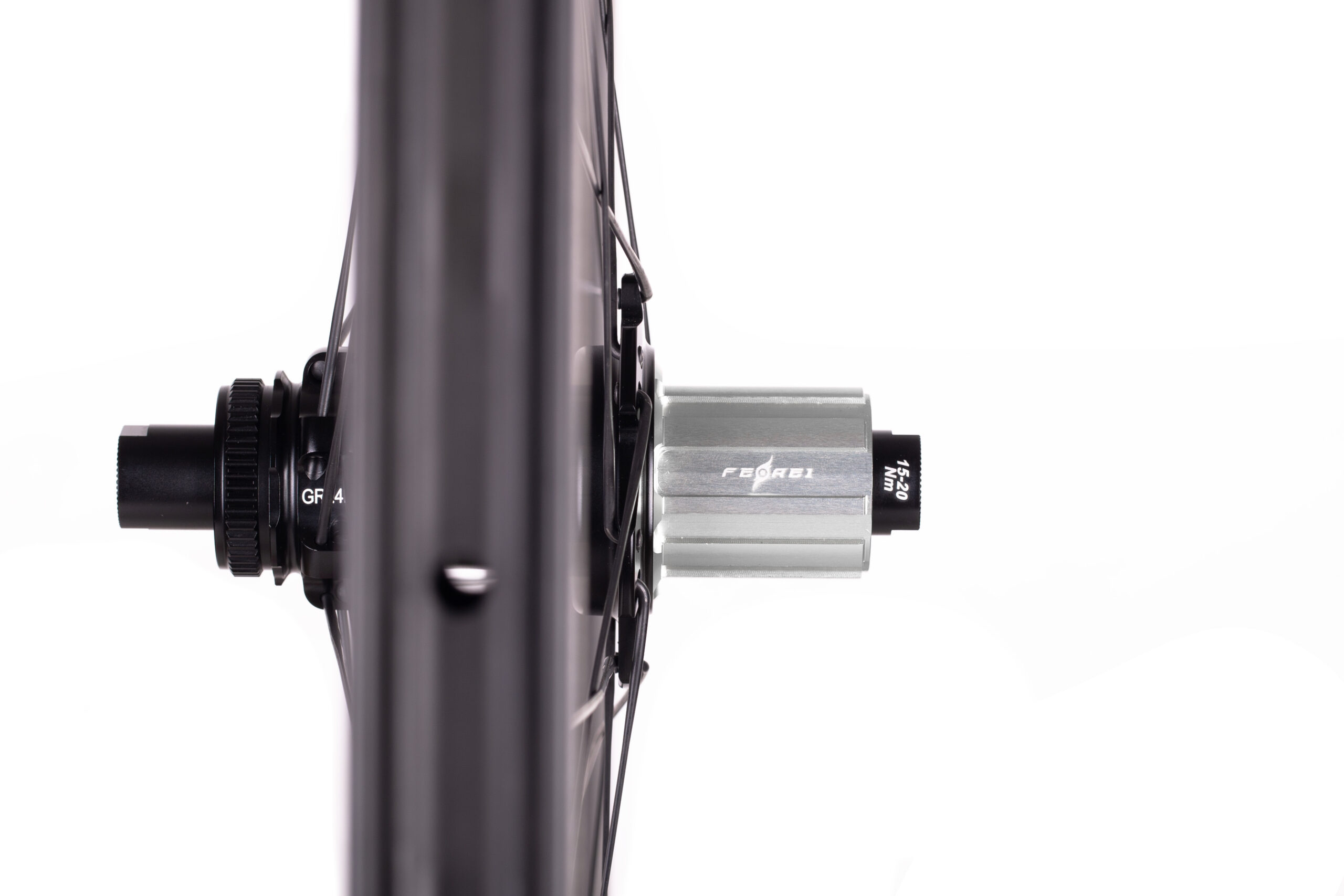

Free hub | HG/XDR/CP |
Spoke | Pillar Wing20; |
Weight | front 46mm(616g±15g)rear 46mm(774g±15g) |
front 60mm(695g±15g)rear 60mm(842g±15g) | |
Package Content | 2x Wheels,
1x Manual; 2 x Tubeless valve; 2 x Disc locking ring; 6 x Bearings; 1 x AxleTools |
